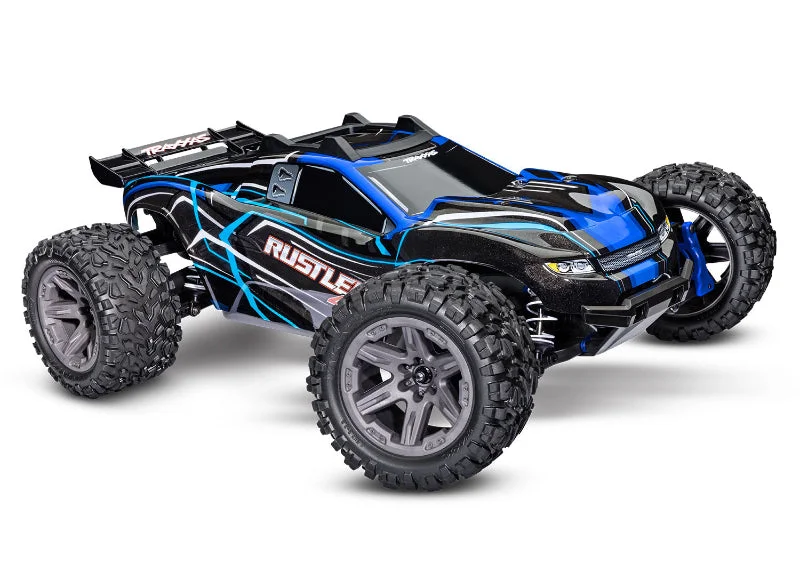

Traxxas: Rustler 4X4 BL-2s

Description

The Rustler 4X4 BL-2s brings brushless speed and rugged 4WD performance. With aggressive styling and waterproof electronics, it’s built for high-flying, all-terrain RC action.

Required to Run

• 2s lipo battery and compatible charger
• Four AA alkaline batteries for the transmitter

Features

• Clipless Body
• Extreme Heavy Duty Upgrade Kit Installed
• TQ™ 2.4 GHz Transmitter
• BL-2s™ Waterproof ESC and BL-2s Brushless Motor

Specifications

• Model Name: Rustler 4X4 BL-2s
• Model Type: Stadium Trucks
• Model Skill Level: 1
• Scale: 1/10
• Weight: 5.13 pounds (2.33 kg)
• Length: 18 inches (457 mm)
• Width: 12.94 inches (329 mm)
• Front Track: 12.94 inches (329 mm)
• Rear Track: 12.94 inches (329 mm)
• Height: 6.35 inches (161 mm)
• Wheelbase: 11.6 inches (295 mm)
• Center Ground Clearance: 1.10 inches (27 mm)
• Drive System: Shaft-driven 4WD
• Drivetrain: Shaft-driven 4WD
• Differential Type: Hardened steel bevel, sealed, limited slip
• Gear Ratio (Internal): 12.81:1
• Gear Pitch: 32 pitch
• Servo(s): 2056 high-torque waterproof
• Radio System: 2.4 GHz 2-channel radio
• Battery Compartment Specs: 162 mm X 50 mm X 25 mm

Motor Specifications

• Motor Name: BL-2s 3300 kV
• Motor Type: Sensorless brushless
• Motor Weight: 7.51 ounces (213 g)
• Motor Length: 3.15 inches (80 mm)
• Motor Diameter: 1.42 inches (36 mm)
• Motor Shaft Size: 3 mm
• Motor Connector Type: Traxxas Quick Connect Motor Plug

ESC Specifications

• ESC Name: BL-2s Electronic Speed Control
• ESC Type: Brushless
• ESC Case Size: 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
• ESC Weight: 3.07 ounces (87 g)
• Motor Connectors: Traxxas Quick Connect Motor Plug
• Battery Connectors: Traxxas High-Current Connector

What’s in the box

• Rustler 4X4 with BL-2s ESC and 3300 kV motor
• Quick Start Guide
• TQ 2.4 GHz radio system
• High quality maintenance tools
